cmd_vel topic으로 로봇 액추에이터 구동하기

이전시간에 cmd_vel 값을 도출하기 위한 파라미터 값을 구하는 방법에 알아보았다.

이번 포스트에서는 아두이노 코드에 파라미터 값을 튜닝한 다음, rqt_robot_steering 툴을 이용하여

로봇에게 cmd_vel 토픽을 발행하고 액추에이터를 구동하고자 한다.





Code

/*
 * Author: Automatic Addison
 * Website: https://automaticaddison.com
 * Description: ROS node that publishes the accumulated ticks for each wheel
 * (/right_ticks and /left_ticks topics) at regular intervals using the
 * built-in encoder (forward = positive; reverse = negative).
 * The node also subscribes to linear & angular velocity commands published on
 * the /cmd_vel topic to drive the robot accordingly.
 * Reference: Practical Robotics in C++ book (ISBN-10 : 9389423465)
 */

#include <ros.h>
#include <std_msgs/Int16.h>
#include <geometry_msgs/Twist.h>

// Handles startup and shutdown of ROS
ros::NodeHandle nh;

////////////////// Tick Data Publishing Variables and Constants ///////////////

// Encoder output to Arduino Interrupt pin. Tracks the tick count.
#define ENC_IN_LEFT_A 2
#define ENC_IN_LEFT_B 4


// Other encoder output to Arduino to keep track of wheel direction
// Tracks the direction of rotation.
#define ENC_IN_RIGHT_A 3
#define ENC_IN_RIGHT_B 11

// True = Forward; False = Reverse
boolean Direction_left = true;
boolean Direction_right = true;

// Minumum and maximum values for 16-bit integers
// Range of 65,535
const int encoder_minimum = -32768;
const int encoder_maximum = 32767;

// Keep track of the number of wheel ticks
std_msgs::Int16 right_wheel_tick_count;
ros::Publisher rightPub("right_ticks", &right_wheel_tick_count);

std_msgs::Int16 left_wheel_tick_count;
ros::Publisher leftPub("left_ticks", &left_wheel_tick_count);

// Time interval for measurements in milliseconds
const int interval = 30;
long previousMillis = 0;
long currentMillis = 0;

////////////////// Motor Controller Variables and Constants ///////////////////

// Motor A connections
const int enA = 9;
const int in1 = 5;
const int in2 = 6;

// Motor B connections
const int enB = 10;
const int in3 = 7;
const int in4 = 8;

// How much the PWM value can change each cycle
const int PWM_INCREMENT = 1;

// Number of ticks per wheel revolution. We won't use this in this code.
const int TICKS_PER_REVOLUTION = 768;

// Wheel radius in meters
const double WHEEL_RADIUS = 0.14;

// Distance from center of the left tire to the center of the right tire in m
const double WHEEL_BASE = 0.17;

// Number of ticks a wheel makes moving a linear distance of 1 meter
// This value was measured manually.
const double TICKS_PER_METER = 1697; // Originally 2880

// Proportional constant, which was measured by measuring the
// PWM-Linear Velocity relationship for the robot.
const int K_P = 278;

// Y-intercept for the PWM-Linear Velocity relationship for the robot
const int b = 52;

// Correction multiplier for drift. Chosen through experimentation.
const int DRIFT_MULTIPLIER = 120;

// Turning PWM output (0 = min, 255 = max for PWM values)
const int PWM_TURN = 80;

// Set maximum and minimum limits for the PWM values
const int PWM_MIN = 80; // about 0.1 m/s
const int PWM_MAX = 100; // about 0.172 m/s

// Set linear velocity and PWM variable values for each wheel
double velLeftWheel = 0;
double velRightWheel = 0;
double pwmLeftReq = 0;
double pwmRightReq = 0;

// Record the time that the last velocity command was received
double lastCmdVelReceived = 0;

/////////////////////// Tick Data Publishing Functions ////////////////////////

// Increment the number of ticks
void right_wheel_tick() {

  // Read the value for the encoder for the right wheel
  int val = digitalRead(ENC_IN_RIGHT_B);

  if (val == LOW) {
    Direction_right = false; // Reverse
  }
  else {
    Direction_right = true; // Forward
  }

  if (Direction_right) {

    if (right_wheel_tick_count.data == encoder_maximum) {
      right_wheel_tick_count.data = encoder_minimum;
    }
    else {
      right_wheel_tick_count.data++;
    }
  }
  else {
    if (right_wheel_tick_count.data == encoder_minimum) {
      right_wheel_tick_count.data = encoder_maximum;
    }
    else {
      right_wheel_tick_count.data--;
    }
  }
}

// Increment the number of ticks
void left_wheel_tick() {

  // Read the value for the encoder for the left wheel
  int val = digitalRead(ENC_IN_LEFT_B);

  if (val == LOW) {
    Direction_left = true; // Reverse
  }
  else {
    Direction_left = false; // Forward
  }

  if (Direction_left) {
    if (left_wheel_tick_count.data == encoder_maximum) {
      left_wheel_tick_count.data = encoder_minimum;
    }
    else {
      left_wheel_tick_count.data++;
    }
  }
  else {
    if (left_wheel_tick_count.data == encoder_minimum) {
      left_wheel_tick_count.data = encoder_maximum;
    }
    else {
      left_wheel_tick_count.data--;
    }
  }
}

/////////////////////// Motor Controller Functions ////////////////////////////

// Calculate the left wheel linear velocity in m/s every time a
// tick count message is rpublished on the /left_ticks topic.
void calc_vel_left_wheel(){

  // Previous timestamp
  static double prevTime = 0;

  // Variable gets created and initialized the first time a function is called.
  static int prevLeftCount = 0;

  // Manage rollover and rollunder when we get outside the 16-bit integer range
  int numOfTicks = (65535 + left_wheel_tick_count.data - prevLeftCount) % 65535;

  // If we have had a big jump, it means the tick count has rolled over.
  if (numOfTicks > 10000) {
        numOfTicks = 0 - (65535 - numOfTicks);
  }

  // Calculate wheel velocity in meters per second
  velLeftWheel = numOfTicks/TICKS_PER_METER/((millis()/1000)-prevTime);

  // Keep track of the previous tick count
  prevLeftCount = left_wheel_tick_count.data;

  // Update the timestamp
  prevTime = (millis()/1000);

}

// Calculate the right wheel linear velocity in m/s every time a
// tick count message is published on the /right_ticks topic.
void calc_vel_right_wheel(){

  // Previous timestamp
  static double prevTime = 0;

  // Variable gets created and initialized the first time a function is called.
  static int prevRightCount = 0;

  // Manage rollover and rollunder when we get outside the 16-bit integer range
  int numOfTicks = (65535 + right_wheel_tick_count.data - prevRightCount) % 65535;

  if (numOfTicks > 10000) {
        numOfTicks = 0 - (65535 - numOfTicks);
  }

  // Calculate wheel velocity in meters per second
  velRightWheel = numOfTicks/TICKS_PER_METER/((millis()/1000)-prevTime);

  prevRightCount = right_wheel_tick_count.data;

  prevTime = (millis()/1000);

}

// Take the velocity command as input and calculate the PWM values.
void calc_pwm_values(const geometry_msgs::Twist& cmdVel) {

  // Record timestamp of last velocity command received
  lastCmdVelReceived = (millis()/1000);

  // Calculate the PWM value given the desired velocity
  pwmLeftReq = K_P * cmdVel.linear.x + b;
  pwmRightReq = K_P * cmdVel.linear.x + b;

  // Check if we need to turn
  if (cmdVel.angular.z != 0.0) {

    // Turn left
    if (cmdVel.angular.z > 0.0) {
      pwmLeftReq = -PWM_TURN;
      pwmRightReq = PWM_TURN;
    }
    // Turn right
    else {
      pwmLeftReq = PWM_TURN;
      pwmRightReq = -PWM_TURN;
    }
  }
  // Go straight
  else {

    // Remove any differences in wheel velocities
    // to make sure the robot goes straight
    static double prevDiff = 0;
    static double prevPrevDiff = 0;
    double currDifference = velLeftWheel - velRightWheel;
    double avgDifference = (prevDiff+prevPrevDiff+currDifference)/3;
    prevPrevDiff = prevDiff;
    prevDiff = currDifference;

    // Correct PWM values of both wheels to make the vehicle go straight
    pwmLeftReq -= (int)(avgDifference * DRIFT_MULTIPLIER);
    pwmRightReq += (int)(avgDifference * DRIFT_MULTIPLIER);
  }

  // Handle low PWM values
  if (abs(pwmLeftReq) < PWM_MIN) {
    pwmLeftReq = 0;
  }
  if (abs(pwmRightReq) < PWM_MIN) {
    pwmRightReq = 0;
  }
}

void set_pwm_values() {

  // These variables will hold our desired PWM values
  static int pwmLeftOut = 0;
  static int pwmRightOut = 0;

  // If the required PWM is of opposite sign as the output PWM, we want to
  // stop the car before switching direction
  static bool stopped = false;
  if ((pwmLeftReq * velLeftWheel < 0 && pwmLeftOut != 0) ||
      (pwmRightReq * velRightWheel < 0 && pwmRightOut != 0)) {
    pwmLeftReq = 0;
    pwmRightReq = 0;
  }

  // Set the direction of the motors
  if (pwmLeftReq > 0) { // Left wheel forward
    digitalWrite(in1, HIGH);
    digitalWrite(in2, LOW);
  }
  else if (pwmLeftReq < 0) { // Left wheel reverse
    digitalWrite(in1, LOW);
    digitalWrite(in2, HIGH);
  }
  else if (pwmLeftReq == 0 && pwmLeftOut == 0 ) { // Left wheel stop
    digitalWrite(in1, LOW);
    digitalWrite(in2, LOW);
  }
  else { // Left wheel stop
    digitalWrite(in1, LOW);
    digitalWrite(in2, LOW);
  }

  if (pwmRightReq > 0) { // Right wheel forward
    digitalWrite(in3, HIGH);
    digitalWrite(in4, LOW);
  }
  else if(pwmRightReq < 0) { // Right wheel reverse
    digitalWrite(in3, LOW);
    digitalWrite(in4, HIGH);
  }
  else if (pwmRightReq == 0 && pwmRightOut == 0) { // Right wheel stop
    digitalWrite(in3, LOW);
    digitalWrite(in4, LOW);
  }
  else { // Right wheel stop
    digitalWrite(in3, LOW);
    digitalWrite(in4, LOW);
  }

  // Increase the required PWM if the robot is not moving
  if (pwmLeftReq != 0 && velLeftWheel == 0) {
    pwmLeftReq *= 1.5;
  }
  if (pwmRightReq != 0 && velRightWheel == 0) {
    pwmRightReq *= 1.5;
  }

  // Calculate the output PWM value by making slow changes to the current value
  if (abs(pwmLeftReq) > pwmLeftOut) {
    pwmLeftOut += PWM_INCREMENT;
  }
  else if (abs(pwmLeftReq) < pwmLeftOut) {
    pwmLeftOut -= PWM_INCREMENT;
  }
  else{}

  if (abs(pwmRightReq) > pwmRightOut) {
    pwmRightOut += PWM_INCREMENT;
  }
  else if(abs(pwmRightReq) < pwmRightOut) {
    pwmRightOut -= PWM_INCREMENT;
  }
  else{}

  // Conditional operator to limit PWM output at the maximum
  pwmLeftOut = (pwmLeftOut > PWM_MAX) ? PWM_MAX : pwmLeftOut;
  pwmRightOut = (pwmRightOut > PWM_MAX) ? PWM_MAX : pwmRightOut;

  // PWM output cannot be less than 0
  pwmLeftOut = (pwmLeftOut < 0) ? 0 : pwmLeftOut;
  pwmRightOut = (pwmRightOut < 0) ? 0 : pwmRightOut;

  // Set the PWM value on the pins
  analogWrite(enA, pwmLeftOut);
  analogWrite(enB, pwmRightOut);
}

// Set up ROS subscriber to the velocity command
ros::Subscriber<geometry_msgs::Twist> subCmdVel("cmd_vel", &calc_pwm_values );

void setup() {

  // Set pin states of the encoder
  pinMode(ENC_IN_LEFT_A , INPUT_PULLUP);
  pinMode(ENC_IN_LEFT_B , INPUT);
  pinMode(ENC_IN_RIGHT_A , INPUT_PULLUP);
  pinMode(ENC_IN_RIGHT_B , INPUT);

  // Every time the pin goes high, this is a tick
  attachInterrupt(digitalPinToInterrupt(ENC_IN_LEFT_A), left_wheel_tick, RISING);
  attachInterrupt(digitalPinToInterrupt(ENC_IN_RIGHT_A), right_wheel_tick, RISING);

  // Motor control pins are outputs
  pinMode(enA, OUTPUT);
  pinMode(enB, OUTPUT);
  pinMode(in1, OUTPUT);
  pinMode(in2, OUTPUT);
  pinMode(in3, OUTPUT);
  pinMode(in4, OUTPUT);

  // Turn off motors - Initial state
  digitalWrite(in1, LOW);
  digitalWrite(in2, LOW);
  digitalWrite(in3, LOW);
  digitalWrite(in4, LOW);

  // Set the motor speed
  analogWrite(enA, 0);
  analogWrite(enB, 0);

  // ROS Setup
  nh.getHardware()->setBaud(115200);
  nh.initNode();
  nh.advertise(rightPub);
  nh.advertise(leftPub);
  nh.subscribe(subCmdVel);
}

void loop() {

  nh.spinOnce();

  // Record the time
  currentMillis = millis();

  // If the time interval has passed, publish the number of ticks,
  // and calculate the velocities.
  if (currentMillis - previousMillis > interval) {

    previousMillis = currentMillis;

    // Publish tick counts to topics
    leftPub.publish( &left_wheel_tick_count );
    rightPub.publish( &right_wheel_tick_count );

    // Calculate the velocity of the right and left wheels
    calc_vel_right_wheel();
    calc_vel_left_wheel();

  }

  // Stop the car if there are no cmd_vel messages
  if((millis()/1000) - lastCmdVelReceived > 1) {
    pwmLeftReq = 0;
    pwmRightReq = 0;
  }

  set_pwm_values();
}



1. 아두이노 코드 컴파일 및 빌드

메모리 관련 경고가 뜨지만, 무시하고 이어서 진행한다.

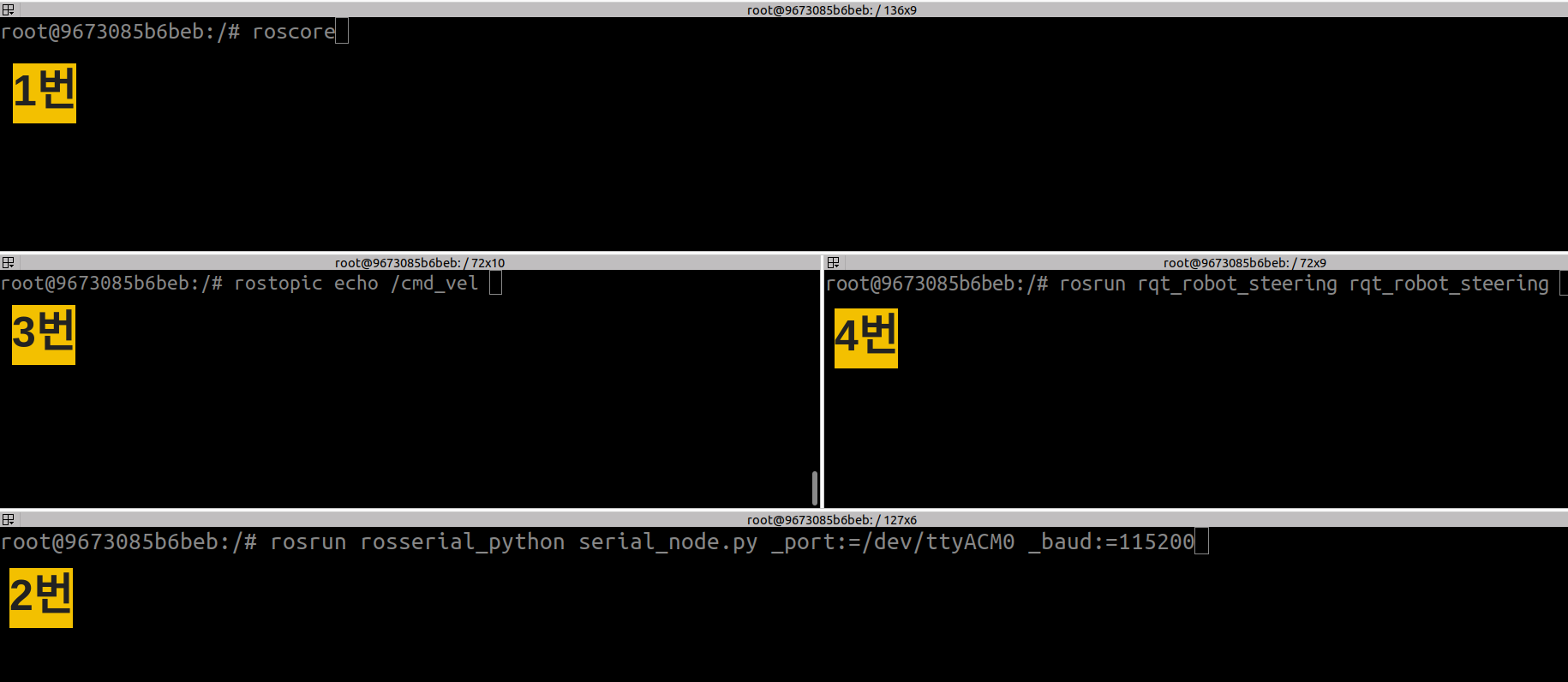

2. 터미널 열고 아래 명령어 실행

//1번
roscore
//2번
rosrun rosserial_python serial_node.py _port:=/dev/ttyACM0 _baud:=115200
//3번
rostopic echo /cmd_vel
//4번
rosrun rqt_robot_steering rqt_robot_steering



Result

정상적으로 작동되는 것을 알 수 있다.

Demo



Rqt_graph
