DJI Tello ROS2 드라이버 설치 [2]

https://github.com/ptrmu/ros2_shared

GitHub - ptrmu/ros2_shared: Shared utilities for ros2

https://github.com/GalBrandwine/tello_ros#installation

GitHub - GalBrandwine/tello_ros: C++ ROS2 driver for DJI Tello drones

http://whatimade.today/ros2-helping-the-community/

ROS2 - Helping the community

1. package install

source /opt/ros/foxy/setup.bash
mkdir -p tello_ws/src
cd tello_ws/src
git clone https://github.com/ptrmu/ros2_shared.git
git clone https://github.com/GalBrandwine/tello_ros.git
cd ..

apt-get install ros-foxy-gazebo-rospkgs



2. file edit

gedit src/tello_ros/tello_driver/src/video_socket.cpp

#include "tello_driver_node.hpp"  //이부분 .h에서 .hpp로 수정

#include <libavutil/frame.h>
#include <opencv2/highgui.hpp>

#include <camera_calibration_parsers/parse.hpp> //이 부분 parse.h 에서 parse.hpp로 수정


namespace tello_driver
{

  // Notes on Tello video:
  // -- frames are always 960x720.
  // -- frames are split into UDP packets of length 1460.
  // -- normal frames are ~10k, or about 8 UDP packets.
  // -- keyframes are ~35k, or about 25 UDP packets.
  // -- keyframes are always preceded by an 8-byte UDP packet and a 13-byte UDP packet -- markers?
  // -- the h264 parser will consume the 8-byte packet, the 13-byte packet and the entire keyframe without
  //    generating a frame. Presumably the keyframe is stored in the parser and referenced later.

  VideoSocket::VideoSocket(TelloDriverNode *driver, unsigned short video_port, const std::string &camera_info_path) :
    TelloSocket(driver, video_port)
  {
    std::string camera_name;
    if (camera_calibration_parsers::readCalibration(camera_info_path, camera_name, camera_info_msg_)) {
      RCLCPP_INFO(driver_->get_logger(), "Parsed camera info for '%s'", camera_name.c_str());
    } else {
      RCLCPP_ERROR(driver_->get_logger(), "Cannot get camera info");
    }

    buffer_ = std::vector<unsigned char>(2048);
    seq_buffer_ = std::vector<unsigned char>(65536);
    listen();
  }

  // Process a video packet from the drone
  void VideoSocket::process_packet(size_t r)
  {
    std::lock_guard<std::mutex> lock(mtx_);

    receive_time_ = driver_->now();

    if (!receiving_) {
      // First packet
      RCLCPP_INFO(driver_->get_logger(), "Receiving video");
      receiving_ = true;
      seq_buffer_next_ = 0;
      seq_buffer_num_packets_ = 0;
    }

    if (seq_buffer_next_ + r >= seq_buffer_.size()) {
      RCLCPP_ERROR(driver_->get_logger(), "Video buffer overflow, dropping sequence");
      seq_buffer_next_ = 0;
      seq_buffer_num_packets_ = 0;
      return;
    }

    std::copy(buffer_.begin(), buffer_.begin() + r, seq_buffer_.begin() + seq_buffer_next_);
    seq_buffer_next_ += r;
    seq_buffer_num_packets_++;

    // If the packet is < 1460 bytes then it's the last packet in the sequence
    if (r < 1460) {
      decode_frames();

      seq_buffer_next_ = 0;
      seq_buffer_num_packets_ = 0;
    }
  }

  // Decode frames
  void VideoSocket::decode_frames()
  {
    size_t next = 0;

    try {
      while (next < seq_buffer_next_) {
        // Parse h264
        ssize_t consumed = decoder_.parse(seq_buffer_.data() + next, seq_buffer_next_ - next);

        // Is a frame available?
        if (decoder_.is_frame_available()) {
          // Decode the frame
          const AVFrame &frame = decoder_.decode_frame();

          // Convert pixels from YUV420P to BGR24
          int size = converter_.predict_size(frame.width, frame.height);
          unsigned char bgr24[size];
          converter_.convert(frame, bgr24);

          // Convert to cv::Mat
          cv::Mat mat{frame.height, frame.width, CV_8UC3, bgr24};

          // Display
          cv::imshow("frame", mat);
          cv::waitKey(1);

          // Synchronize ROS messages
          auto stamp = driver_->now();

          if (driver_->count_subscribers(driver_->image_pub_->get_topic_name()) > 0) {
            std_msgs::msg::Header header{};
            header.frame_id = "camera_frame";
            header.stamp = stamp;
            cv_bridge::CvImage cv_image{header, sensor_msgs::image_encodings::BGR8, mat};
            sensor_msgs::msg::Image sensor_image_msg;
            cv_image.toImageMsg(sensor_image_msg);
            driver_->image_pub_->publish(sensor_image_msg);
          }

          if (driver_->count_subscribers(driver_->camera_info_pub_->get_topic_name()) > 0) {
            camera_info_msg_.header.stamp = stamp;
            driver_->camera_info_pub_->publish(camera_info_msg_);
          }
        }

        next += consumed;
      }
    }
    catch (std::runtime_error e) {
      RCLCPP_ERROR(driver_->get_logger(), e.what());
    }
  }

} // namespace tello_driver

3. build

4.gazebo simulation

https://github.com/GalBrandwine/tello_ros/tree/master/tello_gazebo

apt install gazebo9-common
cd ~/tello_ros_ws
source install/setup.bash
export GAZEBO_MODEL_PATH=${PWD}/install/tello_gazebo/share/tello_gazebo/models
source /usr/share/gazebo/setup.sh
ros2 launch tello_gazebo simple_launch.py

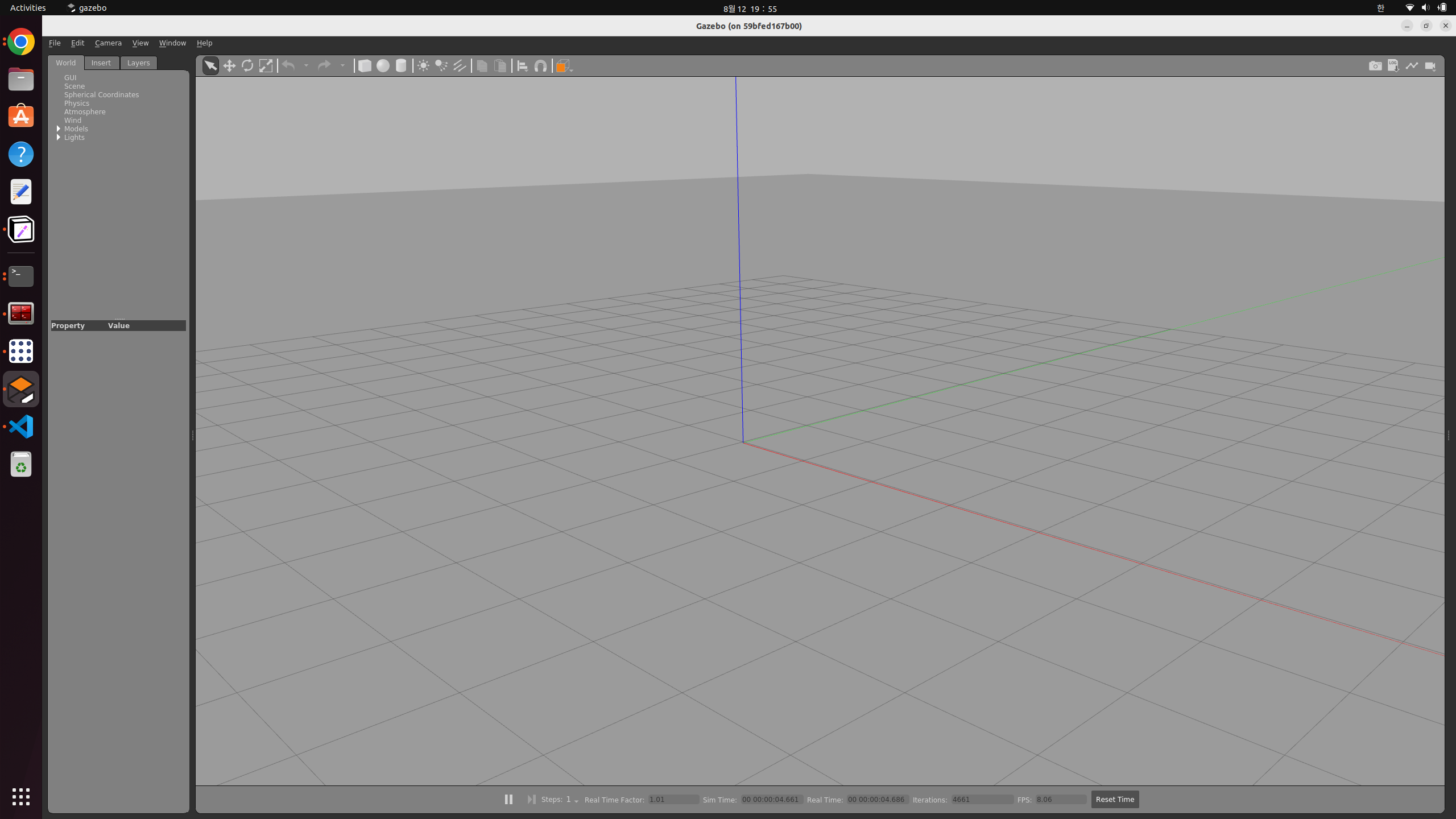

 결과

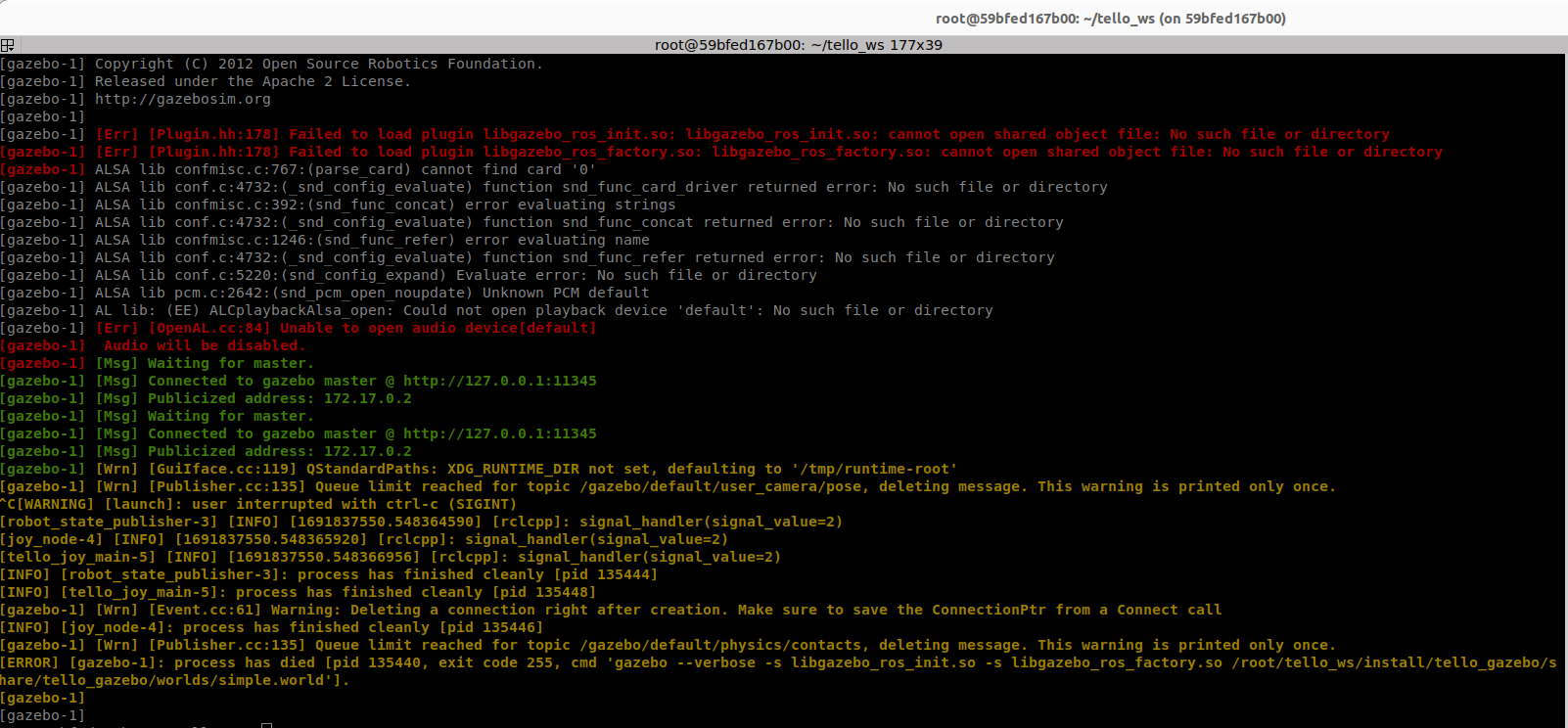

드론이 뜨지 않고 에러가 많이 발생했다 해결해보자

Trouble shooting

file edit

1. simple_launch.py 파일 수정

simple_launch.py

0.00MB

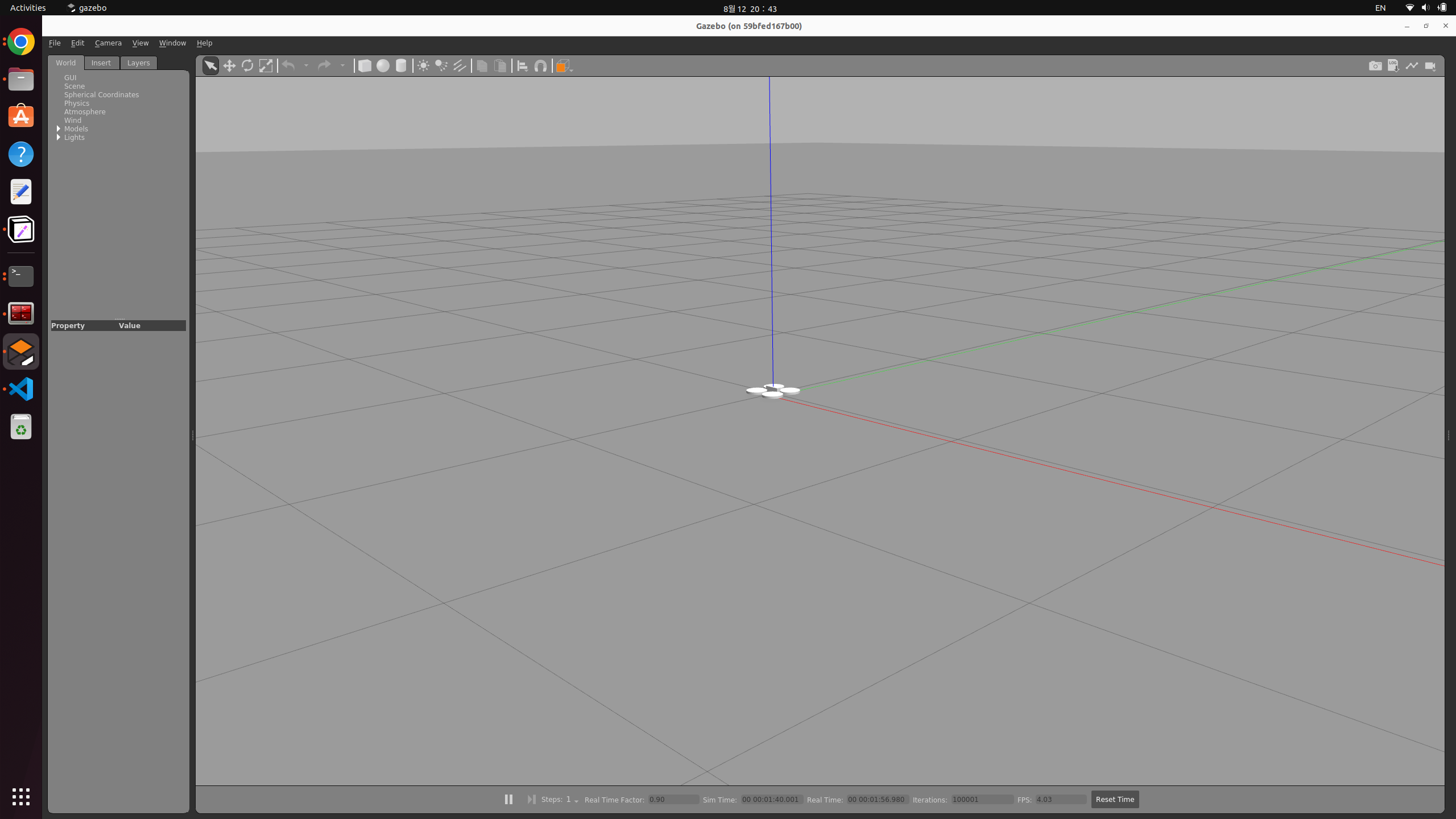

urdf Spawn

방법 1 : /root/tello_ws/install/tello_gazebo/lib/tello_gazebo/transformations.py 추가

transformations.py

0.06MB

방법 2 : inject_entity.py에 quaternion from euler 메소드 추가

def quaternion_from_euler(roll, pitch, yaw):
    """
    Converts euler roll, pitch, yaw to quaternion (w in last place)
    quat = [x, y, z, w]
    Bellow should be replaced when porting for ROS 2 Python tf_conversions is done.
    """
    cy = math.cos(yaw * 0.5)
    sy = math.sin(yaw * 0.5)
    cp = math.cos(pitch * 0.5)
    sp = math.sin(pitch * 0.5)
    cr = math.cos(roll * 0.5)
    sr = math.sin(roll * 0.5)

    q = [0] * 4
    q[0] = cy * cp * cr + sy * sp * sr
    q[1] = cy * cp * sr - sy * sp * cr
    q[2] = sy * cp * sr + cy * sp * cr
    q[3] = sy * cp * cr - cy * sp * sr

    return q
